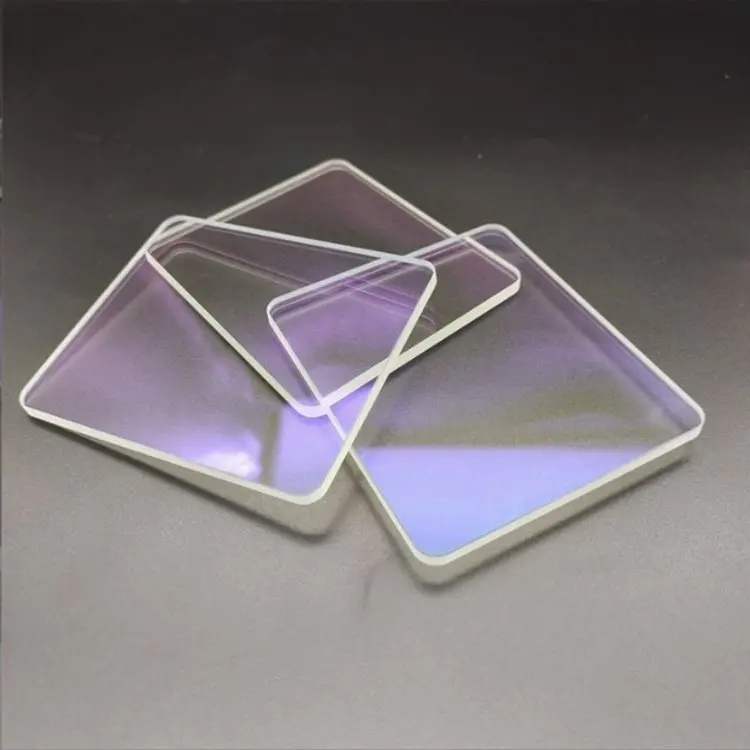

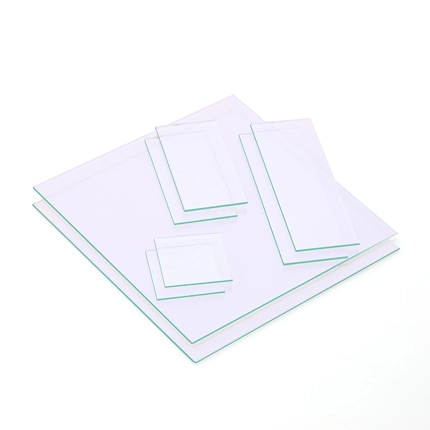

Evergreen provides ITO coated glass substrates for all your research and industrial needs. We customize the size, resistance, and pattern of the product according to your specifications. ITO (Indium Tin Oxide) coated glass is a type of glass that uses a remarkable material known for its exceptional conductivity and transparency, which has led to its widespread use in various applications. This metal oxide is formed by doping indium oxide (In2O3) with tin oxide (SnO2), creating a balance between electrical conductivity and optical transparency. ITO coating makes the glass electrically conductive while maintaining its transparency, allowing for applications in electronics, touchscreens, and various display technologies. This specialized glass is often produced to meet the demands of large-scale manufacturing processes in the electronics industry.
ITO (indium tin oxide) is a transparent conductive oxide composed of indium, tin, and oxygen, which can be applied to substrates such as glass. ITO has become one of the most widely used transparent conductive oxides due to its conductivity and optical transparency.
ITO coated glass, as one of the types of transparent conductive oxide (TCO) coated substrates, is made by coating a thin and uniform layer of indium tin oxide on a glass substrate. The ITO coated glass substrate makes the glass both low in resistance and high in transparency.
Electrical Conductivity: ITO glass exhibits high electrical conductivity, allowing it to conduct electricity while maintaining transparency. The indium tin oxide coating forms a network of conductive paths across the glass surface, enabling the flow of electrical current.
Optical Transparency: Despite its conductivity, ITO glass maintains high levels of optical transparency, allowing light to pass through with minimal absorption or distortion. The thin coating of indium tin oxide is transparent in the visible spectrum, making it suitable for use in display and optical applications.
Surface Resistance: ITO glass offers controlled surface resistance, which can be adjusted by varying the thickness and composition of the indium tin oxide coating. This property makes it suitable for applications requiring specific levels of electrical conductivity, such as touchscreens and electrochromic devices.
Uniform Coating: ITO glass is typically coated using advanced deposition techniques, such as sputtering or chemical vapor deposition (CVD), to ensure uniformity and consistency of the indium tin oxide layer across the glass surface. Uniform coating helps to maintain consistent electrical and optical performance.
Low Reflectivity: ITO glass exhibits low reflectivity, minimizing glare and unwanted reflections on the glass surface. This property is beneficial for display applications, where clear visibility and high contrast are desired.
Mechanical Durability: ITO glass is engineered to be mechanically durable, with the indium tin oxide coating adhering firmly to the glass substrate. This durability ensures long-term performance in demanding environments and applications.
Chemical Stability: ITO glass is resistant to common chemicals and environmental factors, ensuring stability and reliability in various operating conditions. The indium tin oxide coating is typically inert and non-reactive, providing protection against corrosion and degradation.
ITO coated glass can be customized to meet specific requirements for various applications. Customization options typically include:
Size and Shape: Glass substrates can be cut to specific dimensions and shapes to fit the intended application. This is particularly important for specialized devices or installations.
Thickness: Both the glass substrate and the ITO coating can be customized in terms of thickness. The thickness of the ITO layer can affect its electrical resistance and optical properties.
Sheet Resistance: The sheet resistance of the ITO coating can be tailored to meet specific electrical requirements. This is achieved by adjusting the thickness and composition of the ITO layer during the coating process.
Optical Properties: The optical properties, such as transparency and reflectivity, can be customized. This may involve additional coatings or treatments to achieve anti-reflective properties or specific light transmission characteristics.
Surface Treatment: The surface of the ITO coated glass can be treated to enhance its durability, scratch resistance, or hydrophobic properties. This can be important for applications where the glass will be exposed to harsh conditions or frequent handling.
Patterning: For certain applications, such as touchscreens or display technologies, the ITO coating may need to be patterned. This involves creating specific conductive pathways or areas on the glass surface.
Substrate Material: While glass is the most common substrate, other materials such as plastic or flexible substrates can also be used, depending on the application requirements.
Additional Coatings: In some cases, additional coatings may be applied on top of the ITO layer to provide extra functionality, such as anti-glare, anti-fingerprint, or UV protection.
To obtain custom ITO coated glass, you would typically work with Evergreen specialty glass company. They can provide guidance on the best specifications for your application and produce the customized product according to your needs.
Transparent Conductivity: ITO is known for its excellent combination of electrical conductivity and transparency. This makes it suitable for applications where both properties are essential, such as in electronic displays.
Low Resistivity: ITO coatings exhibit low resistivity, enabling the efficient conduction of electricity across the glass surface. This property is crucial for touch-sensitive applications.
Optical Transparency: ITO-coated glass maintains a high level of optical transparency, allowing light to pass through with minimal interference. This is important for display devices where image quality is a priority.
Flexibility: ITO coatings can be applied to flexible substrates, allowing for the creation of flexible and bendable display devices.
Thin Film: The ITO layer is typically very thin, measuring only a few hundred nanometers in thickness, ensuring that it does not significantly affect the overall thickness or weight of the glass.
Touchscreens: ITO glass is widely used in capacitive touchscreens, such as those found in smartphones, tablets, and other electronic devices. The conductive properties of ITO enable accurate touch input.
Liquid Crystal Displays (LCDs): ITO-coated glass is used in LCDs as transparent electrodes for controlling the alignment of liquid crystal molecules.
Organic Light-Emitting Diode (OLED) Displays: ITO is used as a transparent electrode in OLED displays to provide a conductive surface without obstructing the emitted light.
Solar Cells: ITO-coated glass is utilized in some types of transparent conductive films for solar cells, allowing for efficient collection and transport of electric charge.
Electroluminescent Displays: ITO-coated glass is employed in electroluminescent displays where electrical energy is converted into light.
Smart Windows: ITO-coated glass is used in smart windows that can change transparency or tinting levels in response to external stimuli such as temperature or light intensity.
Antistatic Coatings: ITO coatings can also be used as antistatic coatings on glass surfaces, preventing the build-up of static electricity.
While ITO has been widely used in various applications, there is ongoing research to find alternative transparent conductive materials due to the limitations of ITO, such as its brittleness, cost, and dependence on indium, a relatively rare element. Emerging technologies and materials are being explored as potential replacements for ITO in certain applications.
More about ITO coating glass
Pls contact us if you have any inquire or questions, thank you.
