Vacuum glass, also known as vacuum insulated glass (VIG), is a state-of-the-art insulation material that has revolutionized the construction and architectural industries due to its exceptional thermal and acoustic insulation properties. This advanced glazing technology involves creating a vacuum between two panes of glass, effectively eliminating air and reducing heat transfer. The absence of air, a good conductor of heat, means that vacuum glass boasts superior insulation properties compared to traditional double pane windows vacuum or triple-glazed windows. The result is a window system that provides superior insulation, making it an ideal choice for both residential and commercial buildings where energy efficiency is a priority. The edges of the glass panes are sealed with a metal or a combination of metal and glass solder, ensuring the vacuum is maintained over time. To support the panes and prevent them from touching each other due to atmospheric pressure, tiny pillars or spacers are evenly distributed between them. These spacers are designed to be minimally visible to not detract from the glass's clarity and aesthetic appeal.

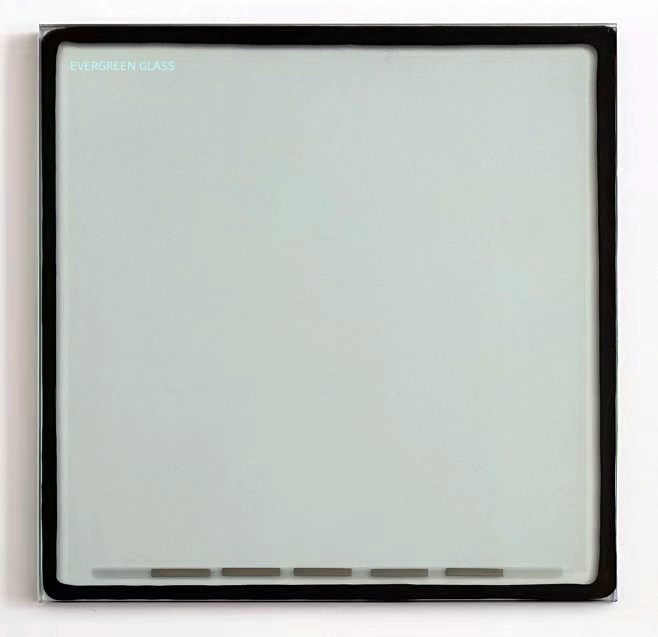

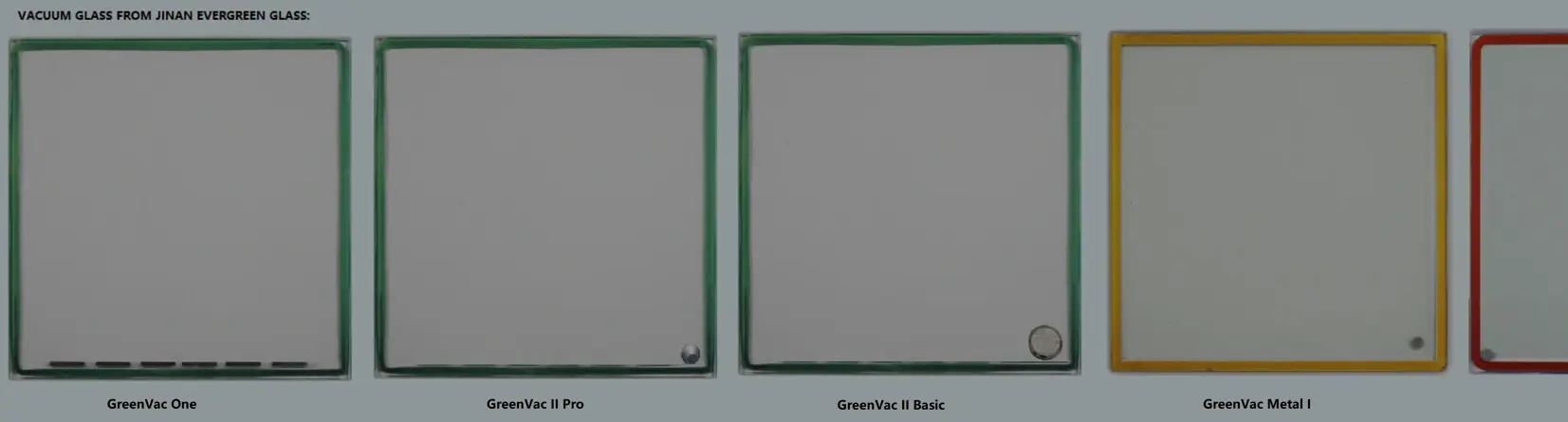

Evergreen Glass study vacuum glass more than ten years .From GreenVac II basic , GreenVac II Pro , to GreenVac One with green edge ,recently Evergreen Glass upgrade vacuum glass with black edge , black edge as similiar as Insulated glass edge that fit into windows .
Contact our vacuum glass supplier for more information!
Here are some advantages double vacuum glass offers:
The energy consumption of doors and windows accounts for about 40% ~ 50% of the total, so the thermal insulation of windows is very important.
Vacuum insulating glass greatly improves the thermal insulation performance of doors and windows. The vacuum layer effectively insulates the convection and heat transfer of air. Low-E glass greatly reduces the radiation heat transfer between two pieces of glass. As a result, its thermal insulation capability is approximately 6-8 times that of single glass and four times that of insulating glass.
Vacuum Glass cuts the outside noise out so you can enjoy the peace of your home.
The vacuum between the glass creates a barrier that sound struggles to go through, meaning your home can be quieter and more peaceful.
The vacuum glass can be produced 6.15mm , 8.15mm , 10.15mm , 12.15mm . The lightest panel are 15kgs/m2.
15years valid time,or even longer.
Its special vacuum structure gives it a strong thermal insulation performance that prevents heat from the interior from radiating out. As a result, condensation is difficult to develop because the surface temperature is greater than the dew point.
Sound-blocking materials can stop the infrasound , the vacuum havenot media to transfer the infrasound, can stop it. Plus it is more energy efficient than double or triple glazing!
Pls contact us if you have any inquire or questions, thank you.
No.12111, JINGSHI ROAD, LIXIA DIST, JINAN CITY, SHANDONG PROVINCE, CHINA
