What is Chemically Hardened Glass?

Chemically hardened glass is a type of strengthened glass that has undergone a specialized chemical tempering process to enhance its structural integrity, scratch resistance, and durability. Unlike thermal tempering, which relies on rapid heating and cooling, chemical tempering uses chemical interactions to achieve a tougher, more resilient glass product. This type of glass is widely used in various industries, including electronics, automotive, and architecture, due to its superior properties. Evergreen, a prominent brand in the glass manufacturing industry, focuses on creating high-quality chemically hardened glass to meet diverse consumer needs.

Chemical Composition of Tempered Glass

The primary ingredient in all glass is silica (silicon dioxide, SiO₂), typically derived from sand. Pure silica glass is hard but fragile, owing to its internal structural arrangements. To improve its characteristics, other elements and compounds are added, transforming it into tempered glass. Common additions include:

- Sodium oxide (Na₂O): Added to reduce the melting temperature of silica and make the glass easier to form.

- Calcium oxide (CaO): Provides stability and improves the durability of the glass.

- Aluminum oxide (Al₂O₃): Enhances the chemical durability and mechanical strength.

- Magnesium oxide (MgO) and Potassium oxide (K₂O): Additional stabilizers that further refine the physical properties of the glass.

These elements together form a glass matrix that is then subjected to a strengthening process to become chemically hardened glass.

Chemical Formula of Tempered Glass

While glass itself is a complex, non-crystalline solid with a disordered structure, its composite formula can be generalized based on its primary constituents. The chemical formula of tempered glass can be represented as follows:

\[ \text{SiO}_2 + \text{Na}_2\text{O} + \text{CaO} + \text{Al}_2\text{O}_3 + \text{K}_2\text{O} + \text{MgO} \]

This formula illustrates the amalgamation of various oxides that contribute to the structural properties necessary for the chemical hardening process.

How does the Chemical Hardening of Glass Work?

The chemical hardening of glass involves replacing smaller ions in the glass surface with larger ions to create a compressive stress layer. This stress layer significantly improves the glass's ability to resist mechanical damage and thermal shock. The process typically focuses on the exchange of sodium ions (Na⁺) with larger potassium ions (K⁺), a method known as ion exchange.

The ion exchange process can be broadly detailed in the following steps:

1. Preparation: The glass is meticulously cleaned to eliminate any contaminants that could interfere with the process.

2. Submersion: The glass is submerged in a molten salt bath, usually potassium nitrate (KNO₃), at an elevated temperature (approximately 400°C-450°C).

3. Ion Exchange: Sodium ions in the glass surface layer are replaced by larger potassium ions from the salt bath. Because potassium ions are larger, they generate compressive stress on the glass surface.

4. Cooling: Following the ion exchange, the glass is slowly and uniformly cooled to set the compressive layer.

The resulting compressive stress on the surface and balanced tensile stress in the interior make the glass significantly tougher than untreated glass.

What is the Process of Chemical Tempering Glass?

The process of chemically tempering glass, also referred to as ion-exchange tempering, is an intricate procedure designed to enhance the glass's strength and durability. Here are the detailed stages of the process:

1. Initial Cleaning: Initially, the glass panes are meticulously cleaned to remove any imperfections or contaminants that could affect the quality of the final product. Precision cleaning is essential because even minor particles can cause defects in the glass surface and compromise the integrity of the glass after tempering.

2. Heating Phase: The cleaned glass is then heated uniformly to a temperature just below its melting point, usually between 400°C and 450°C. This heating phase prepares the glass for the ion exchange reaction by loosening the matrix structure to facilitate ion movement.

3. Ion-Exchange Bath: The heated glass is submerged in a molten salt bath containing potassium nitrate (KNO₃). At this stage, sodium ions (Na⁺) within the glass surface layer migrate out and are replaced by larger potassium ions (K⁺) from the salt bath. This exchange is promoted by the thermal energy supplied during the heating phase.

4. Formation of Compressive Layer: As potassium ions, which are significantly larger than sodium ions, take their place in the glass matrix, they induce compressive stress in the surface layer. This layer counteracts the tensile stress that arises in the interior of the glass, resulting in a toughened glass surface.

5. Controlled Cooling: The glass is then cooled in a controlled manner. Uniform cooling is critical to ensure the newly formed compressive layer sets evenly across the glass surface. Any rapid or uneven cooling could lead to stress points and potential breakage.

6. Inspection and Quality Control: Following the tempering cycle, the glass undergoes a thorough inspection for any defects or irregularities. This quality control step ensures that the glass meets the stringent standards required for its intended application, whether in consumer electronics, automotive components, or architectural features.

7. Cutting and Shaping: Notably, glass must be cut and shaped before undergoing chemical tempering, as the compressive stress layer makes post-tempering modifications impractical and could lead to breakage. Therefore, any necessary shaping or cutting needs to be performed on the glass before it is subjected to the tempering process.

Benefits of Chemically Hardened Glass

- Enhanced Strength: Chemically hardened glass can be up to six times stronger than untreated glass. This substantial increase in strength makes it ideal for applications requiring additional safety and durability.

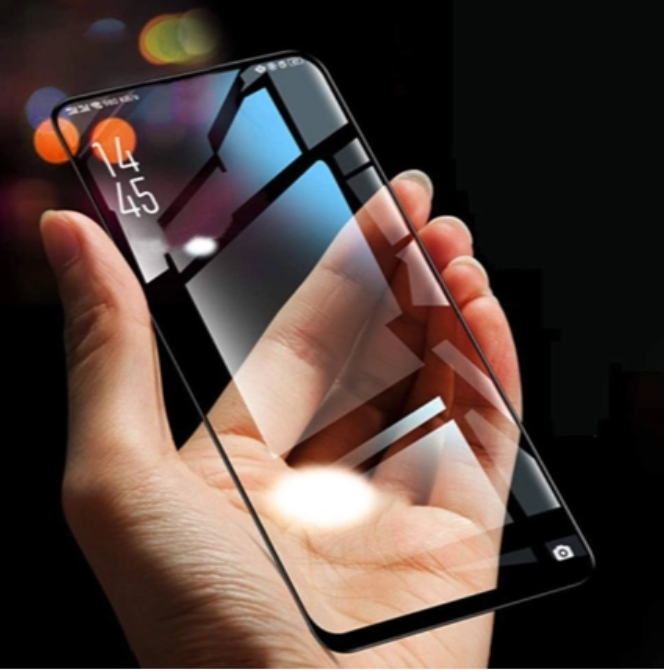

- Improved Scratch Resistance: The compressive stress layer formed on the surface also provides superior scratch resistance, extending the life of products like smartphone screens and other touch-sensitive devices.

- Optical Clarity: Unlike thermal tempering, which can sometimes introduce minor optical distortions, chemical tempering maintains the glass's original clarity and transparency, making it suitable for high-precision applications like cameras and optical lenses.

- Increased Impact Resistance: The glass's ability to withstand impacts without shattering into dangerous shards is greatly enhanced, making it a preferred choice for automotive windows and public transportation systems where safety is paramount.

- Thermal Stability: Chemically hardened glass exhibits better resistance to thermal stress and can handle sudden temperature changes more effectively than untreated glass, which is critical in environments with variable temperatures.

Evergreen leverages advanced techniques and stringent quality control measures to produce chemically hardened glass that meets the diverse demands of different industries. By focusing on innovation and excellence, Evergreen ensures that its chemically hardened glass products provide the best possible performance in strength, durability, and optical clarity.

Chemically hardened glass is a testament to how advanced material science can transform the properties of everyday materials to meet modern technological and architectural demands. Through detailed processes involving precise ion exchange and quality control, chemically hardened glass emerges as a sophisticated solution for enhancing safety, durability, and functionality across various applications. Evergreen's commitment to excellence in this field underscores the importance of ongoing innovation in glass technology.
